Aircraft Information


SMART-1

Specifications for the SMART-1 variant of BD5J are a little different than other BD5J variants, we have improved the range, the RCS (Radar Cross Section), thrust and custom avionics to improve safety and reliability, the SMART-1 even has auxillary power for client instruments and tracking packages. The SMART-1 is truly a unique and valuable asset for the military and DoD agencies, the SMART-1 has a nominal RCS of -10 db, tested at the Navy Radar Reflectivity Laboratory, to fully test the sensitivity of client instruments and sensors. As the aircraft is a natural threat representation of a cruise missile target on radar, is manned and has a short turn around time there is no better cruise missile surrogate on the market.


Radar Cross Section Testing
Radar Cross Section Testing Close Up

If you have questions on any performance or specifications not listed here or are specific to your program, please feel free to contact us.

SMART-1 FEATURES

  • Manned
  • Long range tank
  • UHF data transmission antenna
  • “Stealth” canopy
  • Transportable by road or air cargo
  • Rapid turn-around times

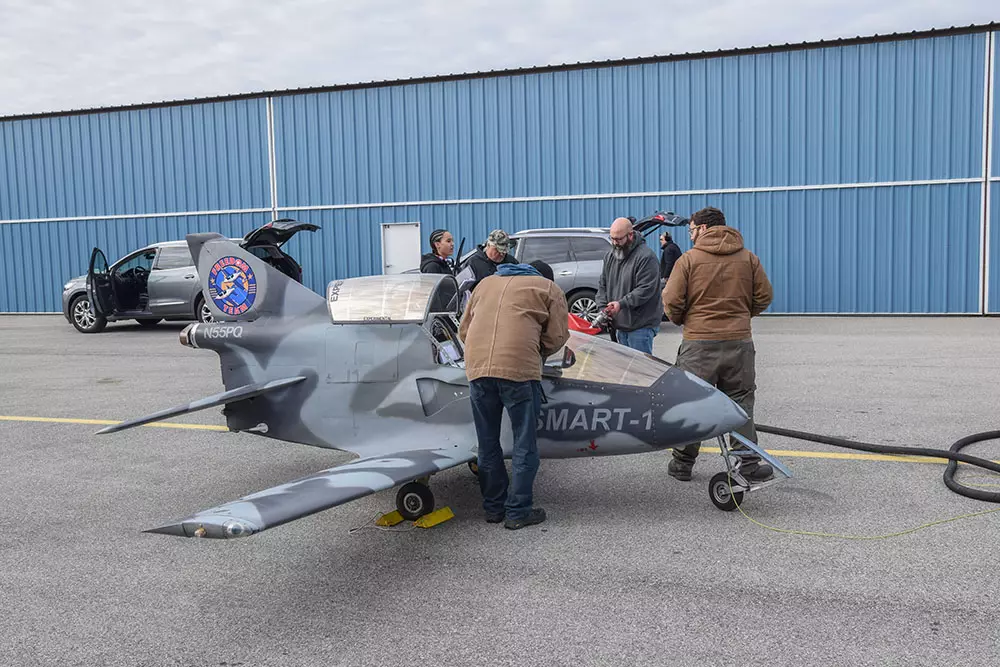

    • SMART-1 Pre engine start

    PERFORMANCE

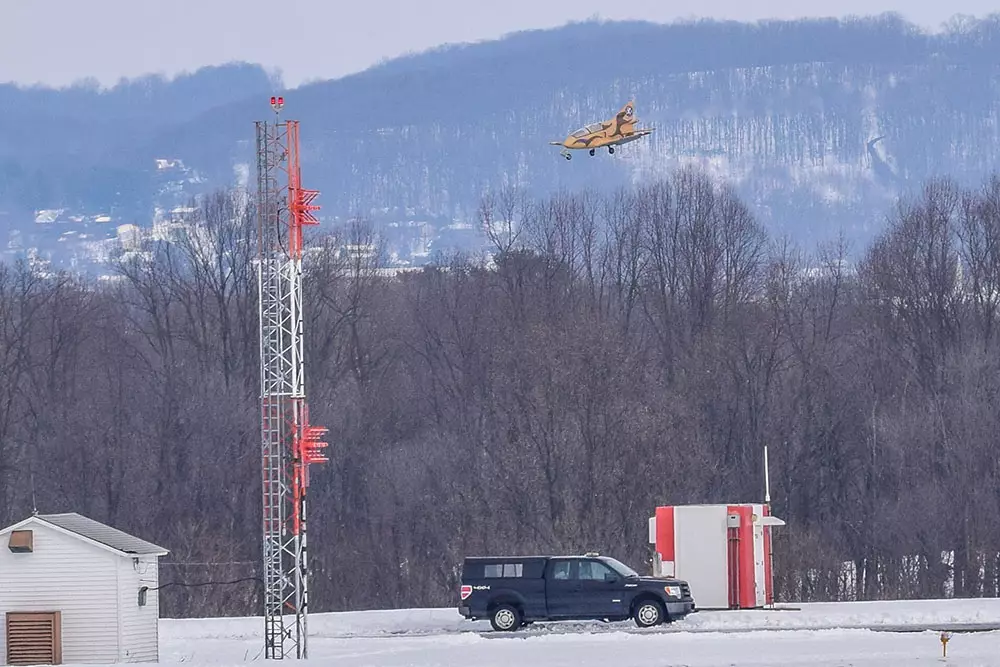

    N21AP Landing
    Maximum Speed (Sea Level): 250 knots T.A.S. Minimum Speed (Stall) Full Gross Wt.: 72 knots T.O. Distance: 2,500 feet (S.L.) Maximum Range: 325 n.m. (160 knot economy) Dash Range: 240 n.m. (250 knots) Maximum Operating Altitude: 24,000 feet

    SPECIFICATIONS

    Wing Span: 17 feet Length: 12 feet Empty Weight: 465 lbs. Gross Weight: 1,150 lbs. Thrust: 300 lbs.
    Pre Flight Checks
    Click and drag on BD5J to rotate 3D model, click settings for more options.
